Turning and part handling cycles for use on any class of CNC lathe, mill, or millturn

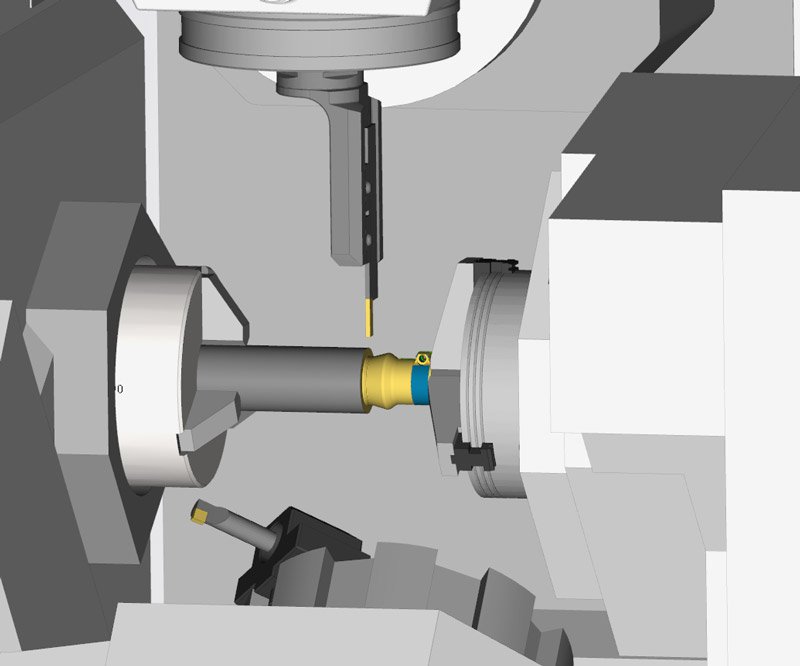

SolidTurn® is a suite of turning and part handling cycles available for use on any class of CNC lathe, mill, or millturn machine. Use ESPRIT's Modeless Programming to combine turning cycles with any of ESPRIT's other machining and inspection cycles to create one complete process with machine-optimized, edit-free G-code. As a full-spectrum solution, SolidTurn quickly produces efficient rough and finish toolpaths for a wide variety of workpieces and machining situations. To support unique requirements for specific parts and materials, ESPRIT offers extensive user control of individual cutter movements. These stock-aware machining cycles consider the remaining stock, tool assembly, workholding, and the complete virtual machine to assure an optimized and collision-free toolpath.

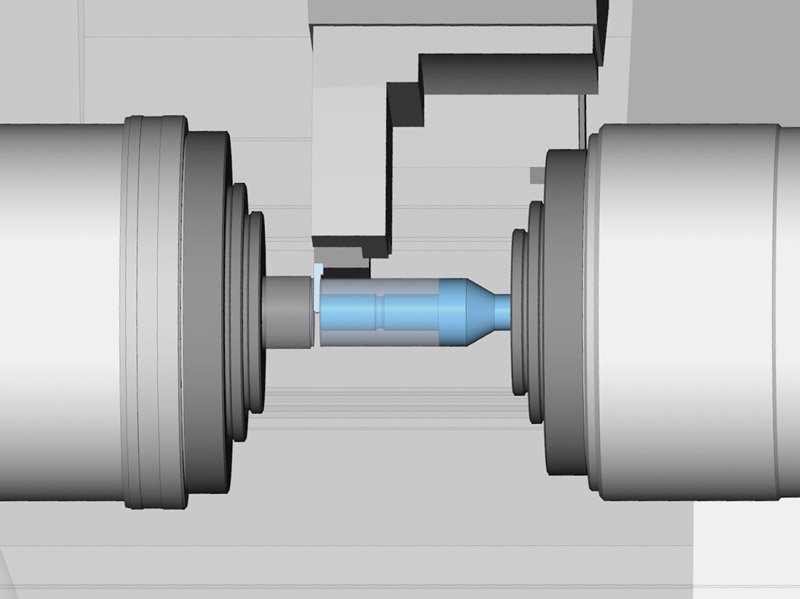

Use the SolidTurn machining cycles on any CNC machine capable of turning, including traditional lathes with horizontal or vertical spindles, and milling machines with turning capability. For turning centers, ESPRIT supports live tooling, part handling, and highly specialized configurations, such as spindles with turning axes, mounted anywhere on the machine. ESPRIT offers a natural workflow for programming, optimization, and simulation of a full suite of traditional turning cycles, followed with seamless output of machine-optimized G-code. Beyond the traditional cycles, ESPRIT offers optional support for:

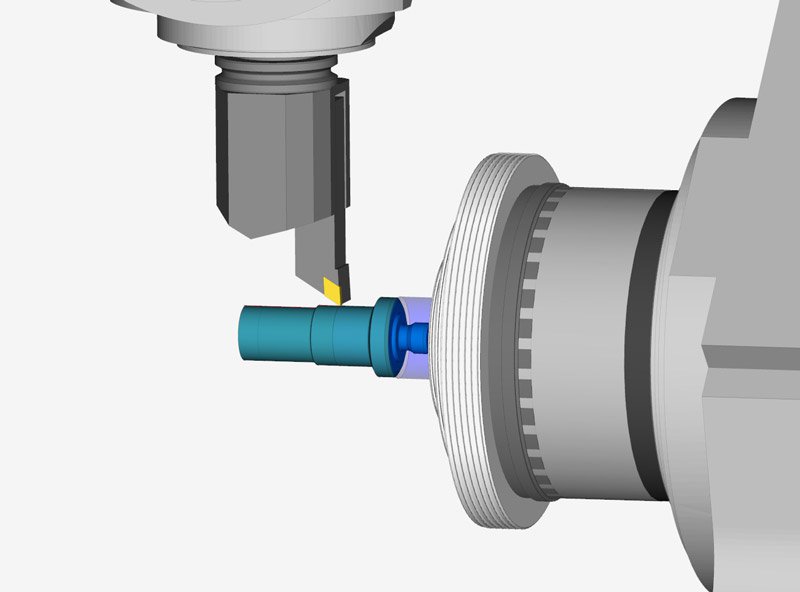

ESPRIT sets itself apart with a unique blend of automation and user control, resulting in quick, easy programming while also giving complete control over the machining process. Adjust any aspect of the machine's movements, including automatically calculated approach and retract links, entry and exit control for entering and leaving the material, and stock allowances that may vary along the workpiece surfaces to allow for finish machining. ESPRIT automatically trims the toolpath to the remaining stock, eliminating air cutting and minimizing cycle times.

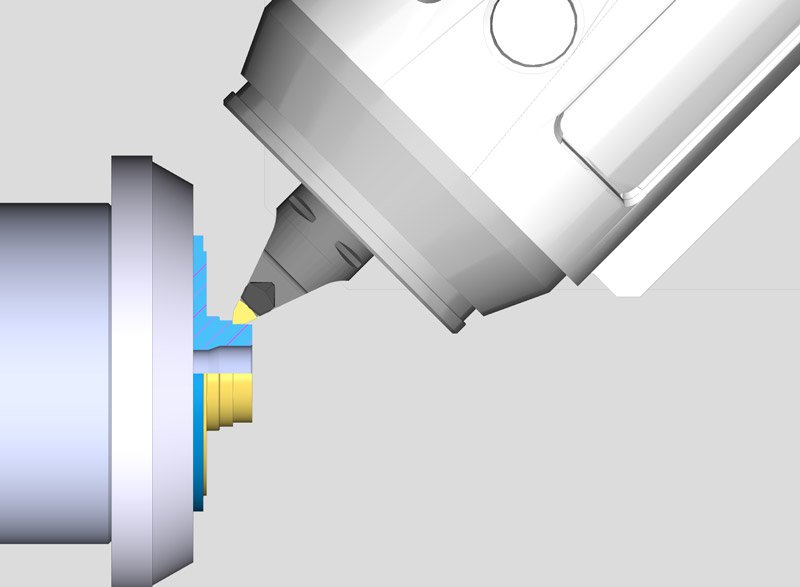

SolidTurn includes a powerful set of roughing cycles that are quick and easy for standard work and are also packed with flexibility and control for demanding applications. Choose from six roughing patterns and three depth-of-cut (DOC) strategies to optimize cycle times for the part material, geometry, and machining objectives. Use a constant DOC for consistent cutting forces through the cycle and the ability to use optimal cutting speeds for minimum cycle time. A variable DOC allows the roughing cycle to produce a constant stock allowance on all diameters of the workpiece for optimal finishing. Alternately, a decreasing DOC minimizes part deflection on delicate parts as the stock material is removed.

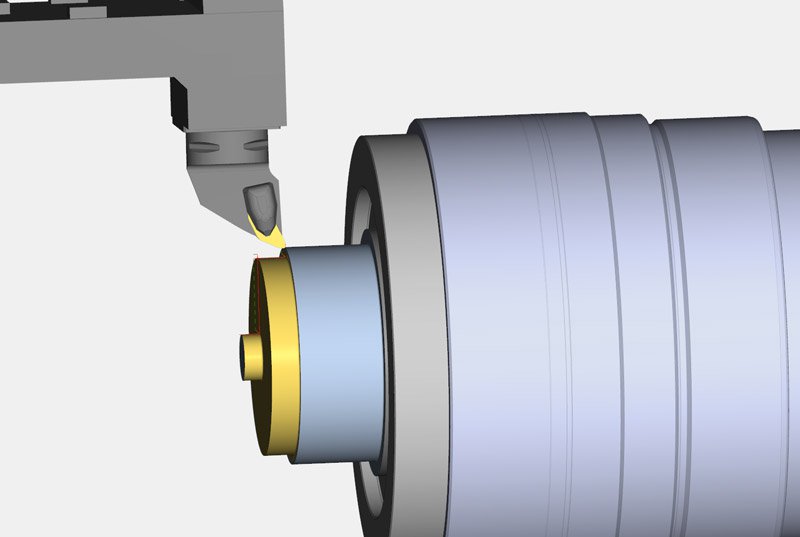

ESPRIT offers a contouring cycle for profile cutting, facing, and OD or ID turning. This universal machining cycle drives single-point tools for a wide variety of roughing and finishing tasks. With the contouring cycle, machine the entire profile in one continuous pass, with or without undercut areas. Alternately, use different cutting directions or strategies for varying faces and diameters of the workpiece. When working with 3D geometry, the feature may be in any plane that intersects the turning axis, eliminating the need to manipulate geometry.

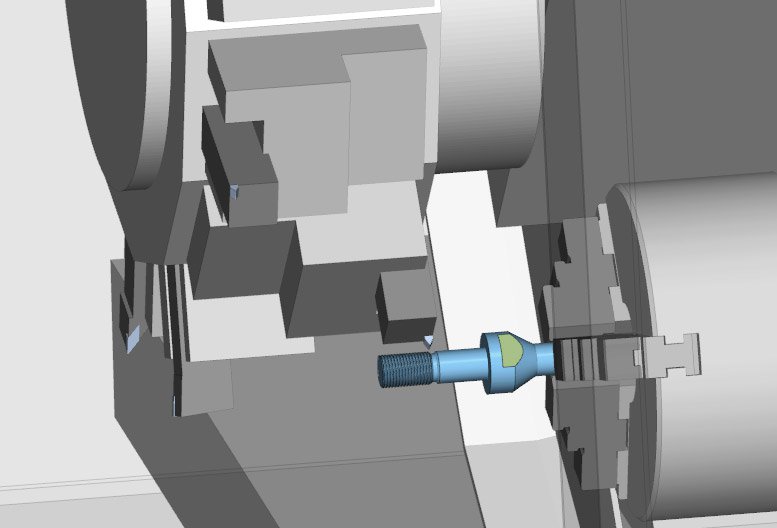

For roughing and finishing grooves on the OD, face, and ID of the workpiece, ESPRIT offers simplicity in programming with comprehensive tool control and the flexibility to choose from four roughing patterns and two finish techniques. Options for threading include single- or multi-point, with straight or tapered threads, and constant or variable leads. ESPRIT automatically calculates the depth and number of cuts using a database of industry-standard threads, all with a manual override option.

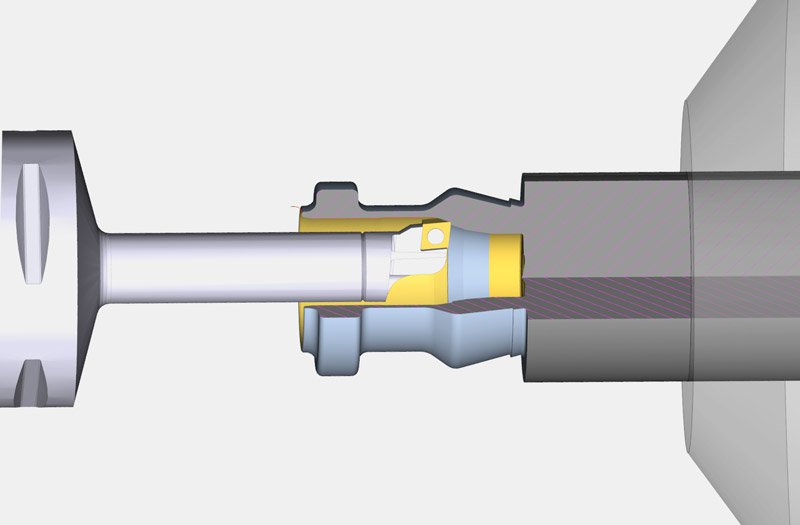

ESPRIT's suite of holemaking cycles produce a wide variety of hole styles: blind, thru, interrupted, deep, threaded, countersink, counterbore, and more. With the option of using a spinning tool, a spinning workpiece, or both, these holemaking cycles are suitable for use on either a mill or a lathe. Working from a hole feature containing a set of properties that define the hole style and its geometric shape, ESPRIT's hole making cycles quickly produce toolpaths optimized for a minimal cycle time for any number of holes in any orientation.

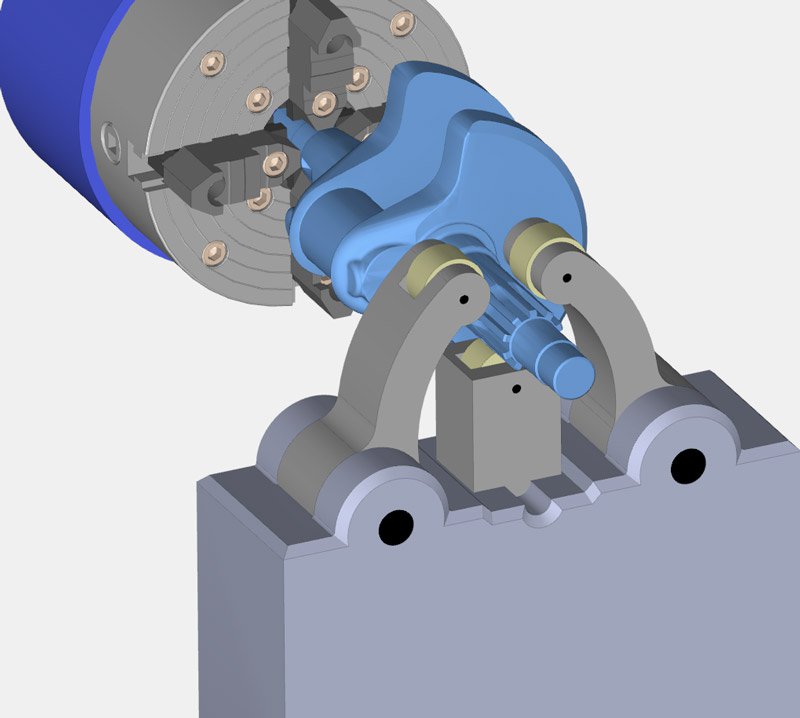

ESPRIT includes part handling and stock support cycles to program the complete on-machine process, from stock to finished part. Part handling cycles include support for bar feeders, sub-spindle pickups, workpiece cutoff, and part catchers. SolidTurn offers optional cycles for tailstock positioning and engagement timing, and steady rest positioning and clamping. Use these cycles at any point in the program in combination with any other ESPRIT milling, turning, or inspection cycles. Machine-aware programming for part handling and stock support includes collision avoidance, accurate simulation for process verification, and machine-optimized G-code output.
For high-speed rough turning and grooving, ESPRIT offers ProfitTurning, an innovative cutting cycle that allows significantly higher cutting speeds over traditional turning methods. ProfitTurning uses an algorithm that closely manages cutter engagement, producing a toolpath that has consistent chip loads and cutting forces, less vibration, and lower residual stresses on the part, making it particularly useful for thin walls or hard materials such as superalloys. ProfitTurning increases machine productivity and lengthens tool life.
Used in thousands of shops all over the world, ESPRIT CAM software is a global favorite for all types of machining applications.Ranging from small hometown job shops to multinational enterprises.
